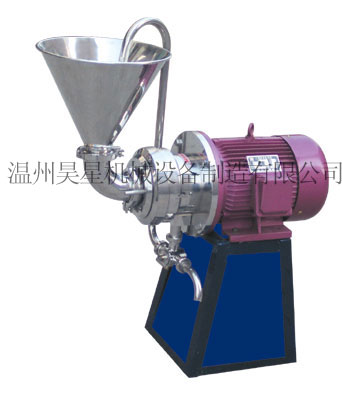

Horizontal JM-W Performance Characteristic:
  • This product has new, the contour practical and so on many patents, the contour is novel, overall health, environmental protection energy conservation.

  • This product execution country standard GB/T 14,466 and enterprise standard Q/WSS01-2004, is the domestic origination.

  • This product organism spot and the material contact part use thestainless steel material. Rack and electric motor steel and iron
    paint.

  • This product matches the horizontal motor and organism joined bodies
    same axle center rotation structure. And the disposition has the
    hopper, the circulatory system.

  • This product design new, operation use simple, installs the maintenance conveniently, the volume is small, the efficiency higher characteristic.

  • Grinds, the smashing, the emulsification, the mix, the disperser for the wet type ultramicron, isotropically, stirs the contour effect function.

  • Is suitable in each kind of liquid state shape medium material, the processing material sticks the density to be supposed to be smaller than 10,000 centipoise medium.

  • May defer to the customer to process nature special request and so on material different acidity, alkalinity, thick thickness has custom-made the production.

  • May replace and surpass the stone mill, the sand blast machine, the ball mill, the breast is uniform, stamp mill work and so on machine, mulser, three rollers machine.

Technical parameter a:

Main technical parameter

Degree of emulsification(um)

Change according to nature of the supplies
(T/h)

Mill Diameter
(mm)

Import diameter
(mm)

Export diameter
(mm)

Cooling circulation external diameter
(mm)

Main rotational speed
(r/min)

Power
(Kw)

External dimension
(LongWide High)mm

Weight
(Kg)

Type

JMS-W500a

2-50

10-50

Ø500

Ø125

Ø80

Ø12

1450-2900

45-200

12006001100

690

JMS-W400a

2-50

10-40

Ø400

Ø125

Ø80

Ø12

1450-2900

45-200

12006001100

590

JMS-W350a

2-50

6-35

Ø350

Ø125

Ø80

Ø12

2900

45

12006001100

550

JMS-W320a

2-50

6-30

Ø320

Ø125

Ø80

Ø12

2900

37

11006001100

450

JMS-W320ab

2-50

6-30

Ø320

Ø125

Ø80

Ø12

2900

45

11006001100

500

JMS-W250a

2-50

5-20

Ø250

Ø125

Ø60

Ø12

2900

30

11004501100

385

JMS-W250ab

2-50

5-20

Ø250

Ø125

Ø60

Ø12

2900

37

11004501100

420

JMS-W200a

2-50

5-10

Ø200

Ø100

Ø50

Ø12

2900

15

7504501030

210

JMS-W200ab

2-50

4-10

Ø200

Ø100

Ø50

Ø12

2900

22

7504501030

235

JMS-W200ac

2-50

4-12

Ø200

Ø100

Ø50

Ø12

2900

30

7504501030

292

JMS-W180a

2-50

2-6

Ø180

Ø90

Ø40

Ø12

2900

11

10004501050

195

JMS-W180ab

2-50

2-6

Ø180

Ø90

Ø40

Ø12

2900

15

10004501050

220

JMS-W180ac

2-50

2-8

Ø180

Ø90

Ø40

Ø12

2900

22

10004501050

238

JMS-W140a

2-50

1-4

Ø140

Ø66

Ø32

Ø12

2900

7.5

7803701000

167

JMS-W140ab

2-50

1-4

Ø140

Ø66

Ø32

Ø12

2900

11

7803701000

172

JMS-W140ac

2-50

1-4

Ø140

Ø66

Ø32

Ø12

2900

15

7803701000

205

JMS-W130

2-50

0.7-3

Ø130

Ø65

Ø30

Ø12

2900

7.5

750360970

160

JMS-W120

2-50

0.7-2.5

Ø120

Ø65

Ø30

Ø12

2900

5.5

750360950

152

JMS-W100

2-50

0.5-2

Ø100

Ø65

Ø30

Ø12

2900

5.5

740350950

145

JMS-W90

2-50

0.5-1

Ø90

Ø50

Ø20

Ø12

2900

4

730380900

108

JMS-W80

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

2900

3

730380900

95

JMS-W65

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

2900

2.2

700350780

75

JMS-W60

2-50

0.02-0.2

Ø60

Ø32

Ø18

Ø8

2900

1.1

500230630

42

Technical parameter b:

Main technical parameter

Degree of emulsification(um)

Change according to nature of the supplies
(T/h)

Mill Diameter
(mm)

Import diameter
(mm)

Export diameter
(mm)

Cooling circulation external diameter
(mm)

Main rotational speed
(r/min)

Power
(Kw)

External dimension
(LongWide High)mm

Weight
(Kg)

Type

JM-W500a-2

2-50

10-50

Ø400

Ø125

Ø80

Ø12

1450-2900

45-200

12006001100

690

JM-W400a-2

2-50

10-40

Ø400

Ø125

Ø80

Ø12

1450-2900

45-200

12006001100

590

JM-W350a-2

2-50

6-35

Ø350

Ø125

Ø80

Ø12

2900

45

12006001100

550

JM-W320a-2

2-50

6-30

Ø320

Ø125

Ø80

Ø12

2900

37

12006001100

450

JM-W320ab-2

2-50

6-30

Ø320

Ø125

Ø80

Ø12

2900

45

12006001100

500

JM-W250a -2

2-50

5-20

Ø250

Ø125

Ø60

Ø12

2900

30

12004501100

385

JM-W250ab -2

2-50

5-20

Ø250

Ø125

Ø60

Ø12

2900

37

12004501100

420

JM-W200a -2

2-50

5-10

Ø200

Ø100

Ø50

Ø12

2900

15

11004501000

210

JM-W200ab -2

2-50

4-10

Ø200

Ø100

Ø50

Ø12

2900

22

11004501000

235

JM-W200ac -2

2-50

4-12

Ø200

Ø100

Ø50

Ø12

2900

30

11004501000

292

JM-W180a -2

2-50

2-6

Ø180

Ø90

Ø40

Ø12

2900

11

1000450950

195

JM-W180ab -2

2-50

2-6

Ø180

Ø90

Ø40

Ø12

2900

15

1000450950

220

JM-W180ac -2

2-50

2-8

Ø180

Ø90

Ø40

Ø12

2900

22

1000450950

238

JM-W140a -2

2-50

1-4

Ø140

Ø66

Ø32

Ø12

2900

7.5

980370900

167

JM-W140ab -2

2-50

1-4

Ø140

Ø66

Ø32

Ø12

2900

11

980370900

172

JM-W140ac -2

2-50

1-4

Ø140

Ø66

Ø32

Ø12

2900

15

980370900

205

JM-W130 -2

2-50

0.7-3

Ø130

Ø65

Ø30

Ø12

2900

7.5

950360870

160

JM-W120 -2

2-50

0.7-2.5

Ø120

Ø65

Ø30

Ø12

2900

5.5

950360850

152

JM-W100 -2

2-50

0.5-2

Ø100

Ø65

Ø30

Ø12

2900

5.5

840350850

145

JM-W90 -2

2-50

0.5-1

Ø90

Ø50

Ø20

Ø12

2900

4

830380800

108

JM-W80 -2

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

2900

3

830380800

95

JM-W65 -2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

2900

2.2

700350780

75

JM-W60 -2

2-50

0.02-0.2

Ø60

Ø32

Ø18

Ø8

2900

1.1

500230630

42

Special precautions:

  • In the processing material does not allow to mix has the quartz sand, the glass fragments, the sweepings and so on the hard matter, strictly prohibits entering the colloid mill processing production.

  • It start, close it and can't start the machine before not washing, after the colloidal to rub there aren't organism , forbid dallying and reversing. Otherwise operate improper to can damage hard quality mechanical package or quiet mill , move mill or take place leakage burn electrical machinery ,etc. trouble seriously.

  • The product when does not affect the basic structure and the performance improvement, not separate informs even slightly. The product and the edition counterfeit must investigate (2,004 edition)
